Translation of "10×10 Label Pneumatic Heat Press Machine with Upper and Lower Heating"

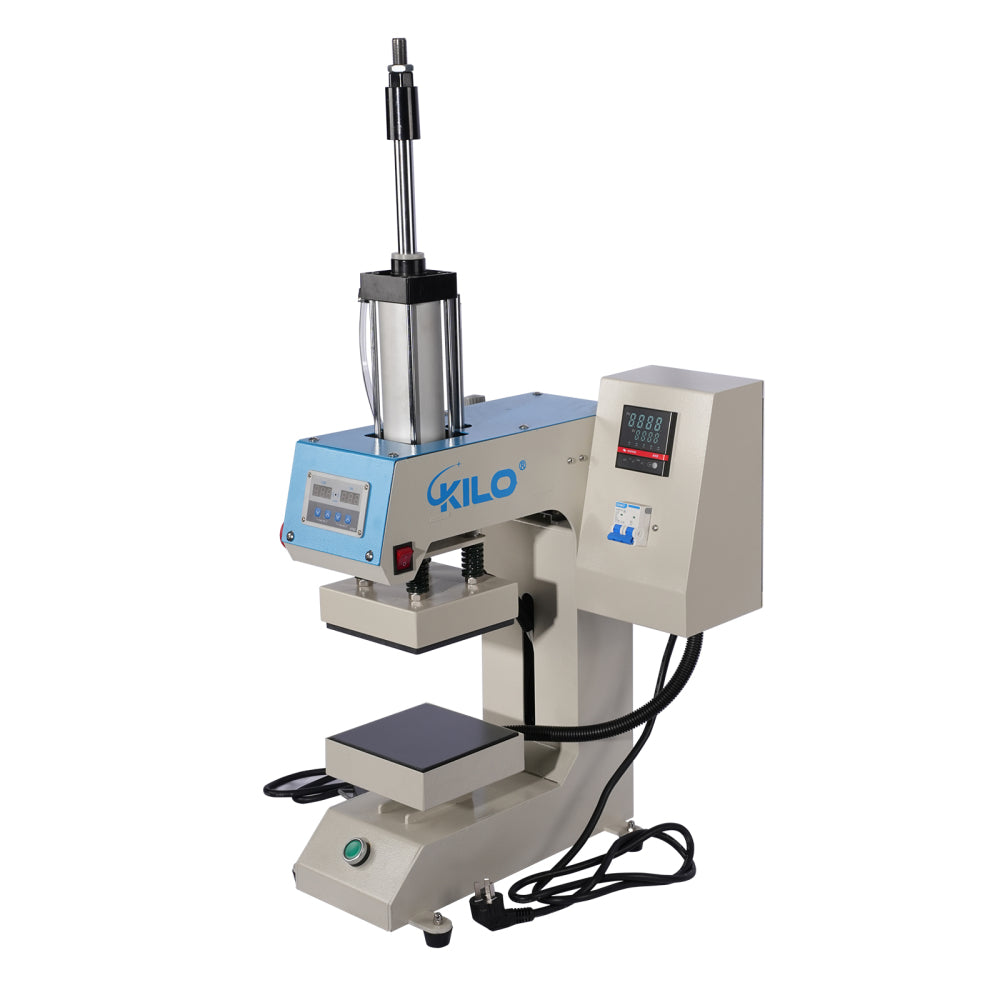

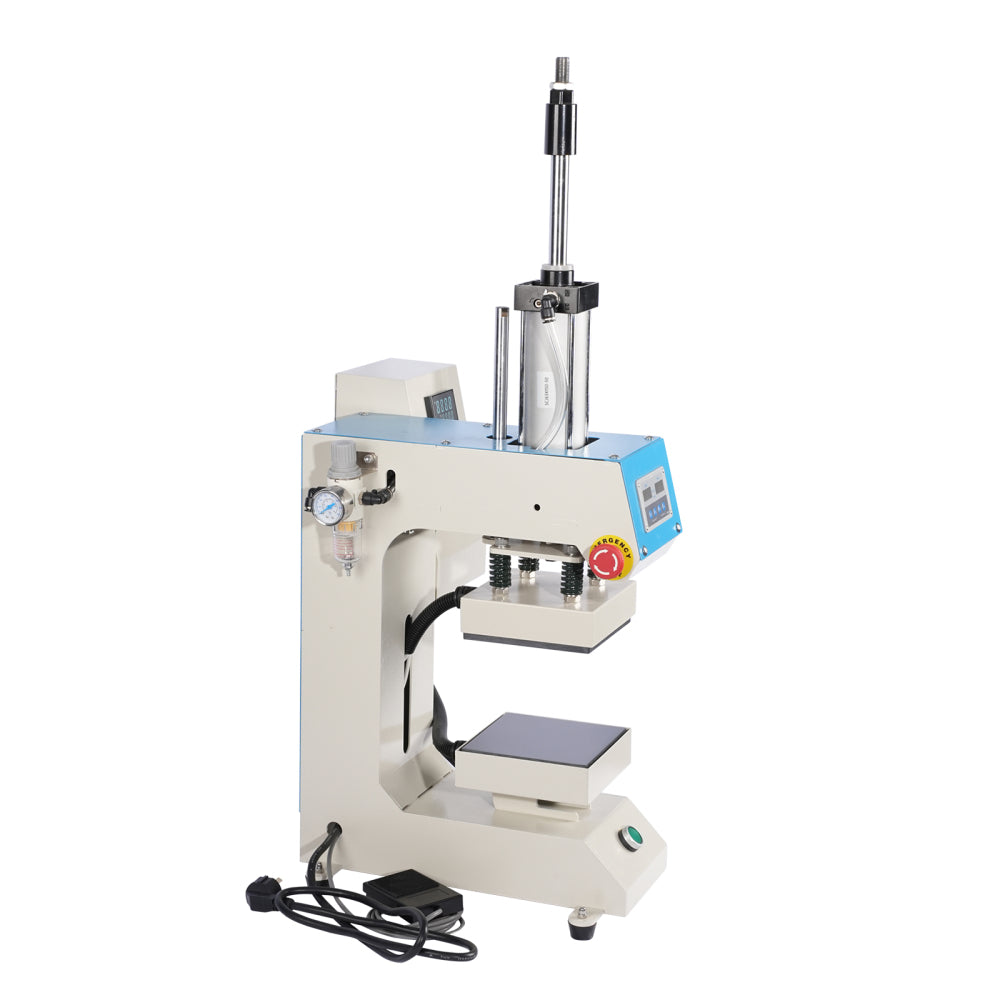

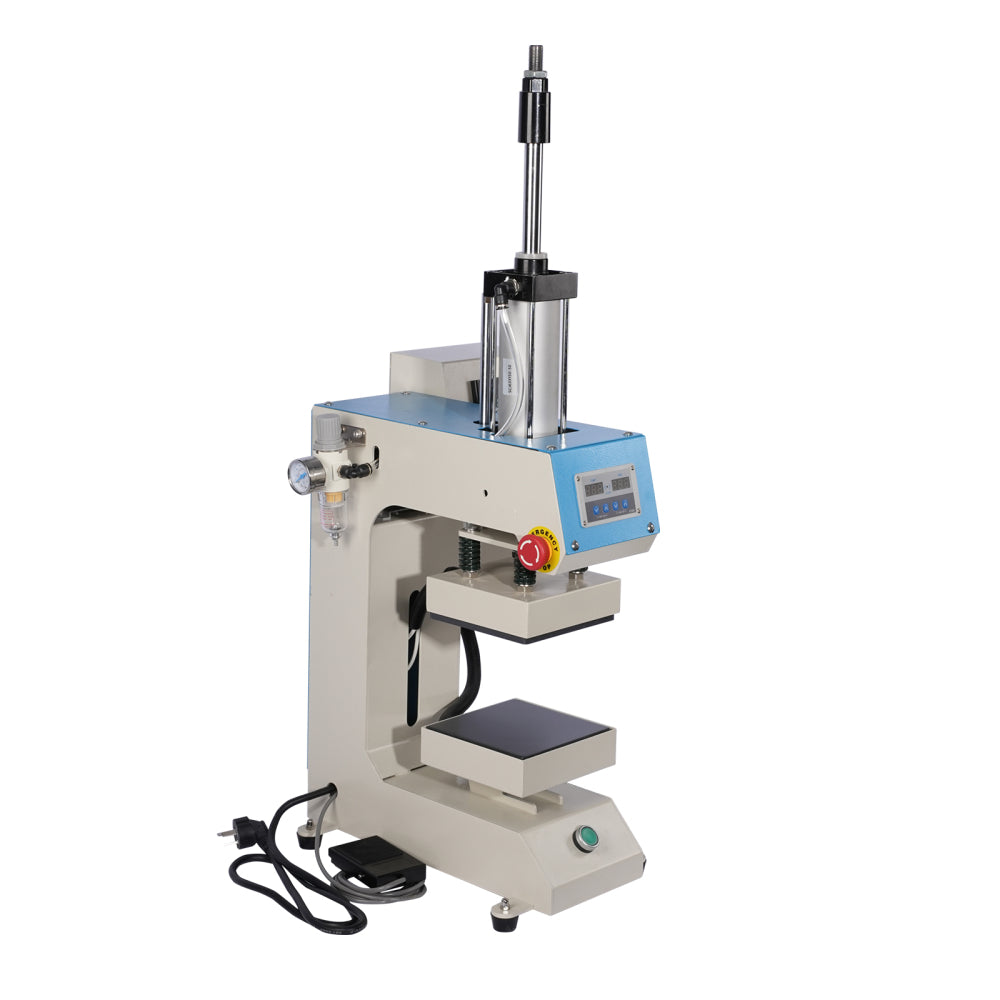

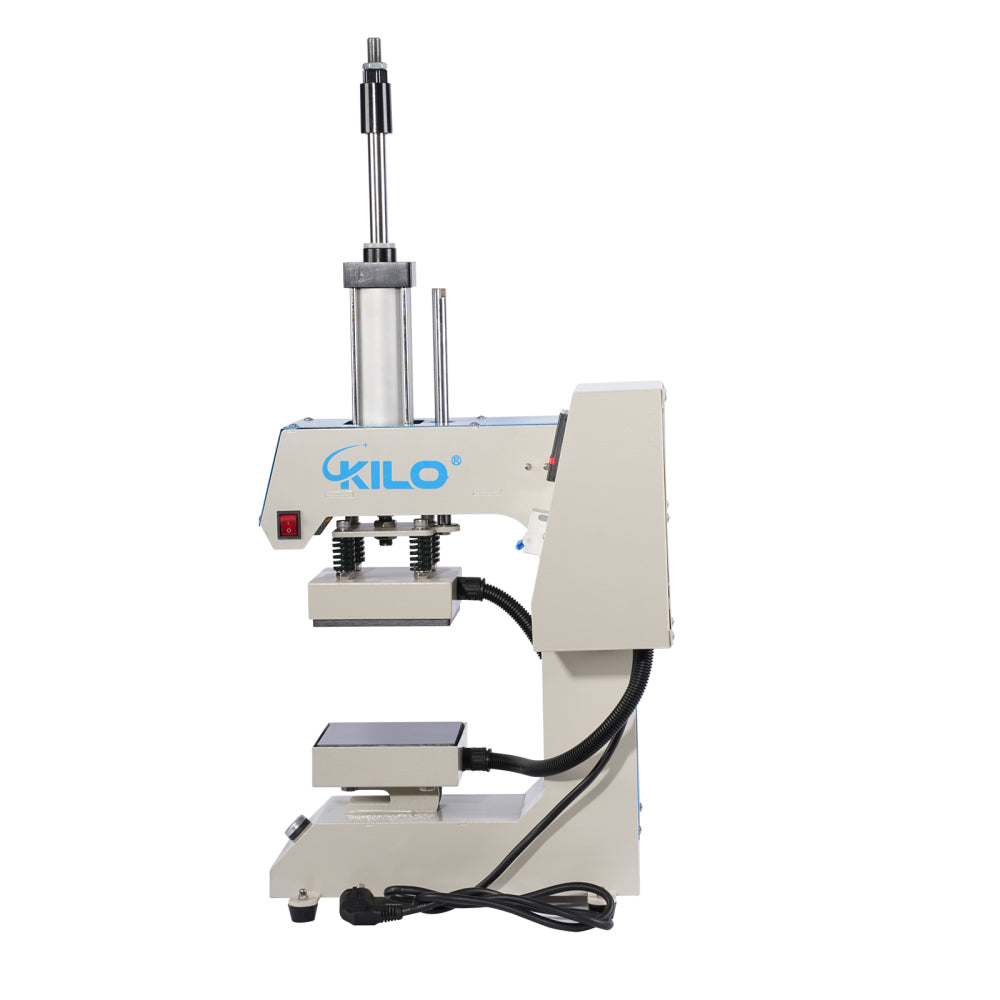

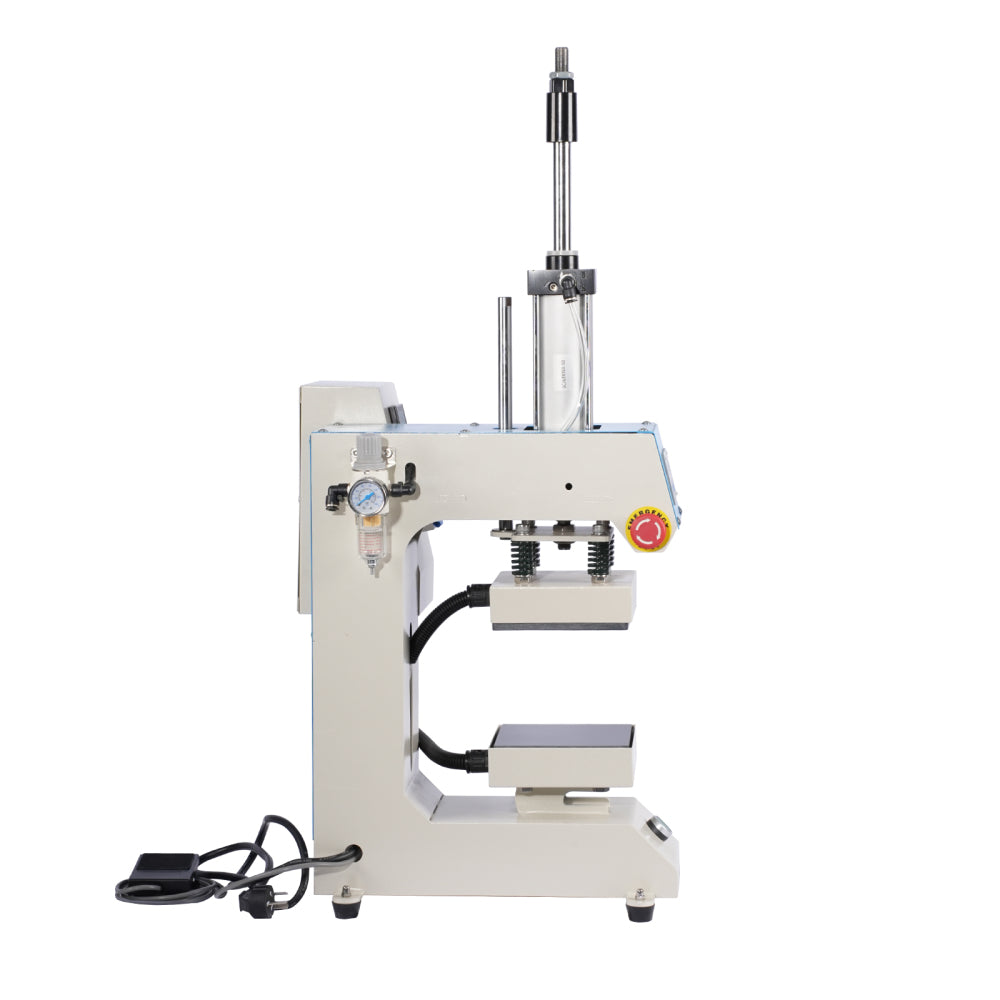

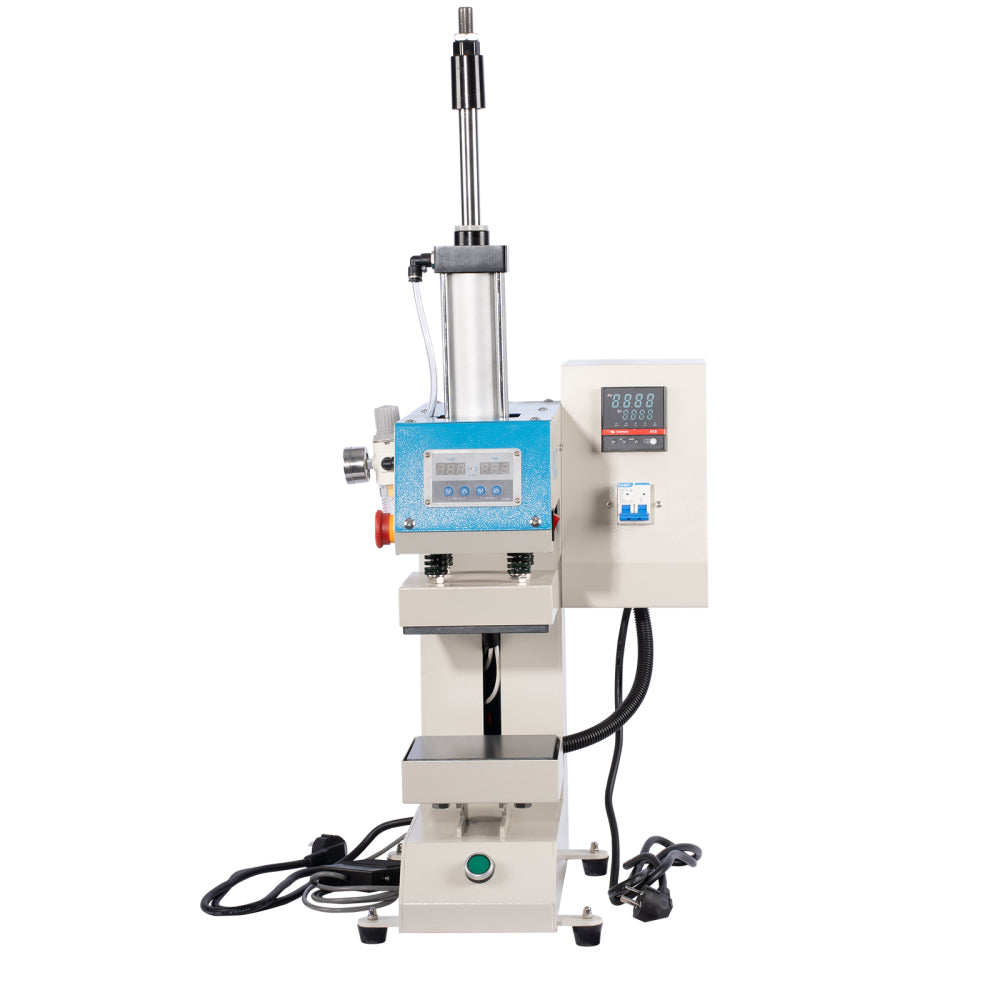

Single Station Pneumatic Heat Press Machine

1. Heat press machine is full digital integrated display control; 2. High accuracy of signal indication when press process is completed; 3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature; 4. Heat press machine pressure can be adjusted up to 8kg/cm², It adopts pneumatic drive to press down, greatly reduce labor intensity and improve work efficiency; 5. Teflon surface sprayed 6. Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure 7. Generally pressure for 0.4Mpa-0.6Mpa heat printing

Raw Materials Cutting

Raw materials preparing for the production

Laser Cutting

Use laser cutting machine to cut steel plate on raw material

Round Tube Cutting

Cutting the round tube into small spares

Steel Plate Bending

According to the model, bend and shape the raw section steel

Welding

1

Assembling

1

QC Inspection

1

Packing

1

Container Loading

1
