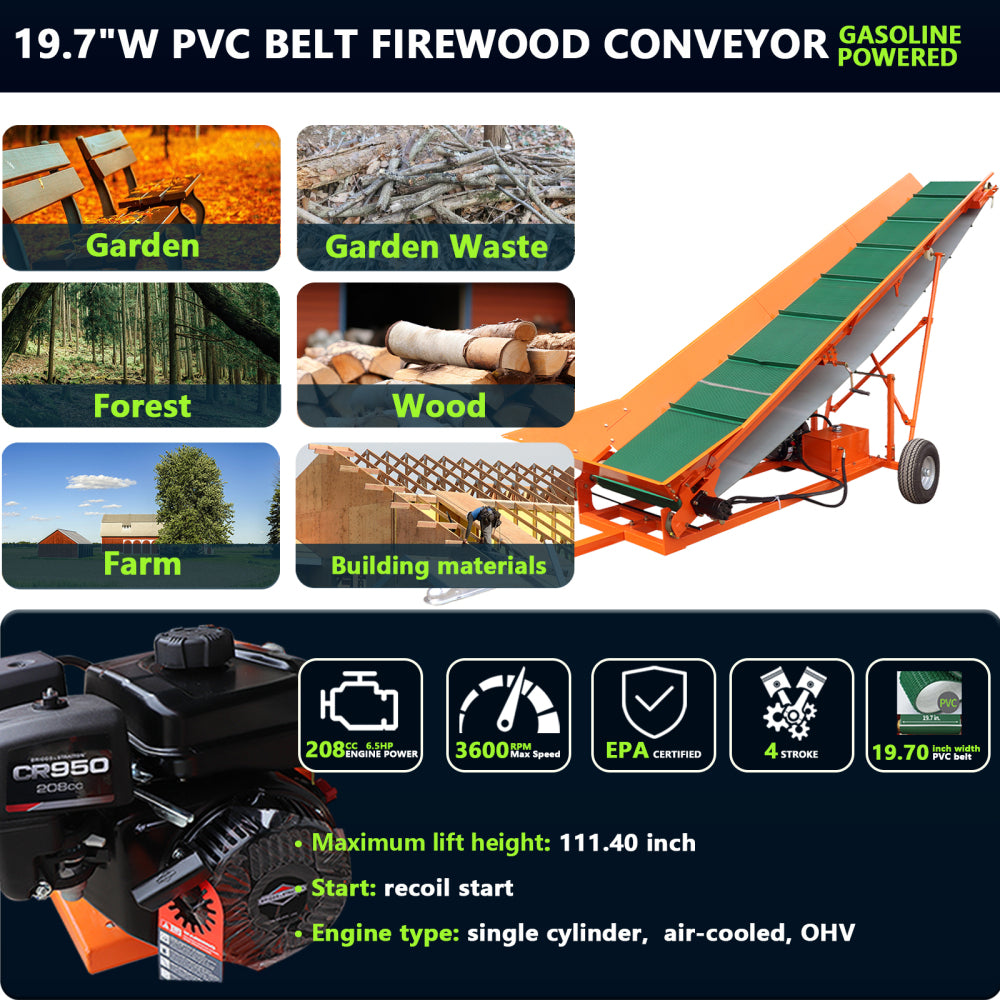

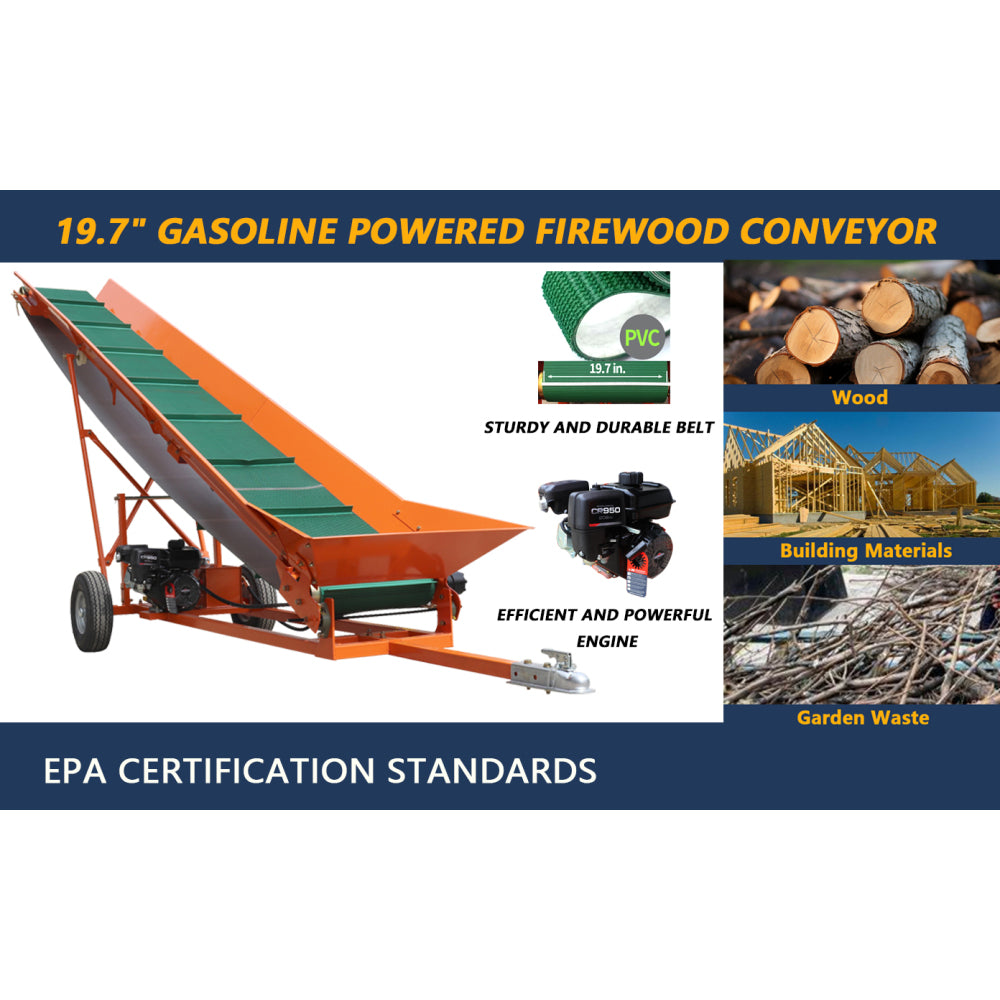

Firewood Conveyor 6.5HP 208cc Gasoline Powered 19.7" Width PVC Belt Wood Conveyor Lifter Elevator with B&S Engine
- The firewood conveyor has 19.7inch / 500mm width PVC belt, the belt thickness is 0.20inch / 5mm.
- The conveyor features a heavy-duty steel frame construction, making it ideal for many different applications. The conveyor height can be adjusted by manual winch, max height is 111.4 inch. The height can be locked at the maximum height and can be operated at different heights depending on your application. And max load capacity is up to 132lbs / 60kg.
- This firewood conveyor offers efficient, powerful and safe performance, making it an essential tool for conveying and lifting firewood in diverse settings.
- This wood conveyor equipped with a 6.5HP B&S gasoline-powered hydraulic driven system operates with high efficiency and powerful performance, max speed can be about 0.7m/s.Drive the engine directly to the hydraulically driven motor. The belt speed is variable by changing the engine speed.
- This PVC belt conveyor features a EPA certificated gasoline engine.

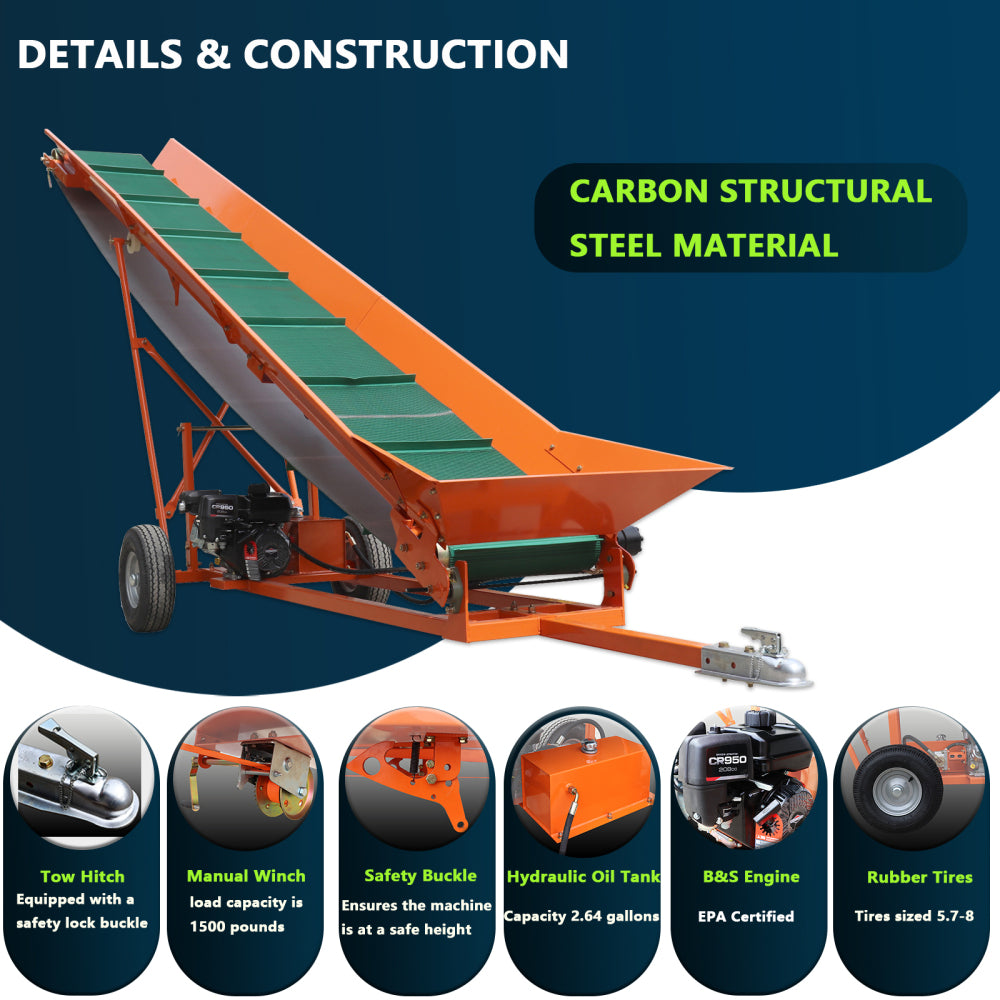

Tow Hitch
Compliant with American
standards, equipped with
a safety lock buckle
B&S Engine
This ATV conveyor is equipped with a 6.5HP 208cc Briggs & Stratton CR950 engine, which is meeting EPA certification standards.
Auxiliary Roller
The auxiliary roller ensures that
debris do not build up between the belts and the rollers enhancing belt life and helps the belt of the transmission machine rotate and adjust the overall length
Manual Winch
The manual winch load capacity is 1500 pounds and the webbing length is 19.69 inches.
Specifications
| Engine | Briggs & Stratton CR950 |
| Power Type | Gasoline |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Displacement | 208 cc; 6.5 HP |
| Start | Recoil start |

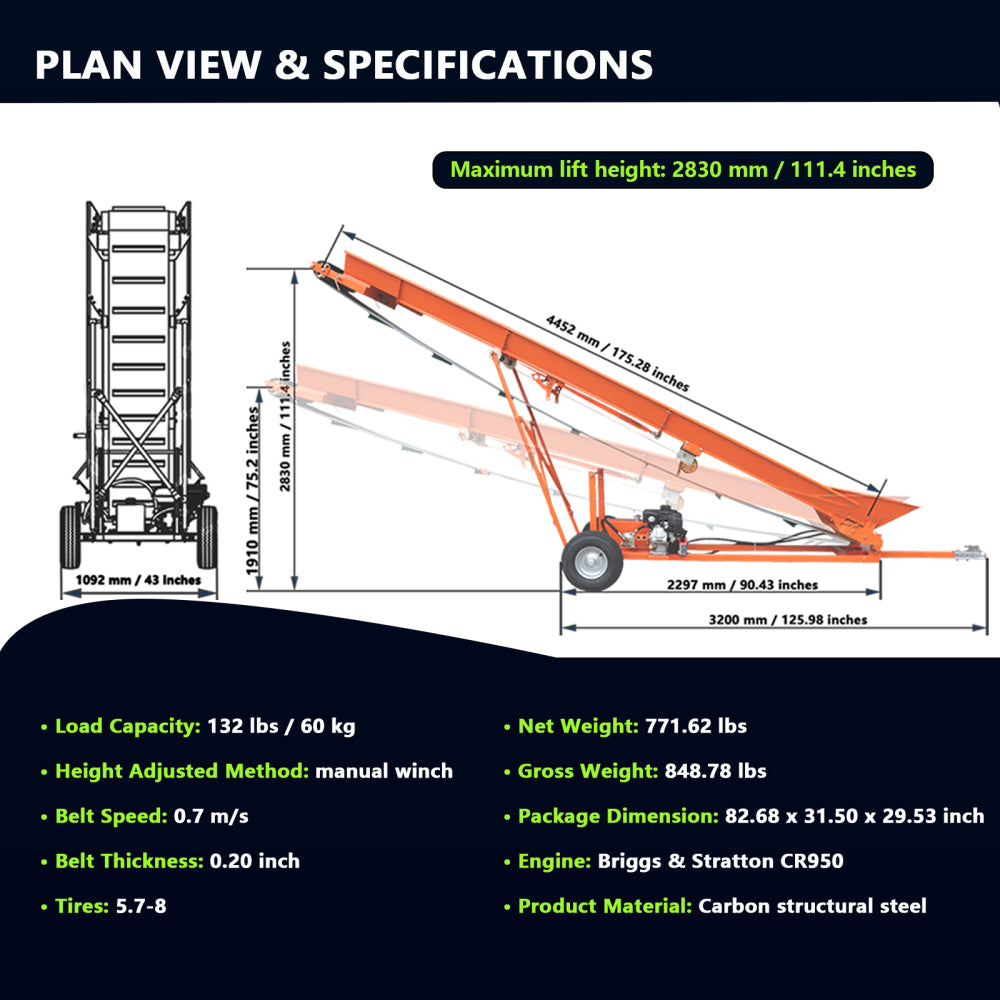

| Max. Height | 111.40 inch |
| Height Adjusted Method | Manual winch |
| Tires | 5.7-8 |
| Product Material | Carbon structural steel |
| Load Capacity | 132 lbs / 60 kg |
| Belt Material | PVC |
| Belt Speed | 0.7 m/s |
| Belt Width | 19.70 inch |
| Belt Thickness | 0.20 inch |
| Net Weight | 771.62 lbs / 350 kgs |
| Gross Weight | 848.78 lbs / 385 kgs |
| Package Dimension | 88.58 x 31.50 x 29.14 inch |
Firewood Conveyor 6.5HP 208cc Gasoline Powered 19.7" Width PVC Belt Wood Conveyor Lifter Elevator with B&S Engine
Sale price$2,550.00
