16x24 pneumatic sliding dual-platen hot press with infrared positioning and built-in air compressor
- Pneumatic heat press transfer machine makes machine more convenient for printing;
- T-shirt printing machine is more accurate for small items printing;
- Heat press machine with base frame for much stable printing and easy movement with the brake caster
- Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes
- Heat press machine powered by an air compressor ;
16" x 24" Up-sliding Heat Press Machine Pneumatic Heat Press Machine
1. Heat press machine is full digital integrated display control;
2. High accuracy of signal indication when press process is completed;
3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
4. Heat press machine pressure can be adjusted up to 0.8Mpa, It adopts connected track which is stable and convenient for sliding, with high efficiency;
5. Special high temperature cloth for hot stamping machine covered
6. Lower plate covered with silicon mat and sponge to heat even heating pressure
7. Heat press machine is automation print once backside inductive screw touched
8. Left and right side bearings parallelly move the heat press machine
9. General pressure for 0.4Mpa-0.6Mpa heat printing

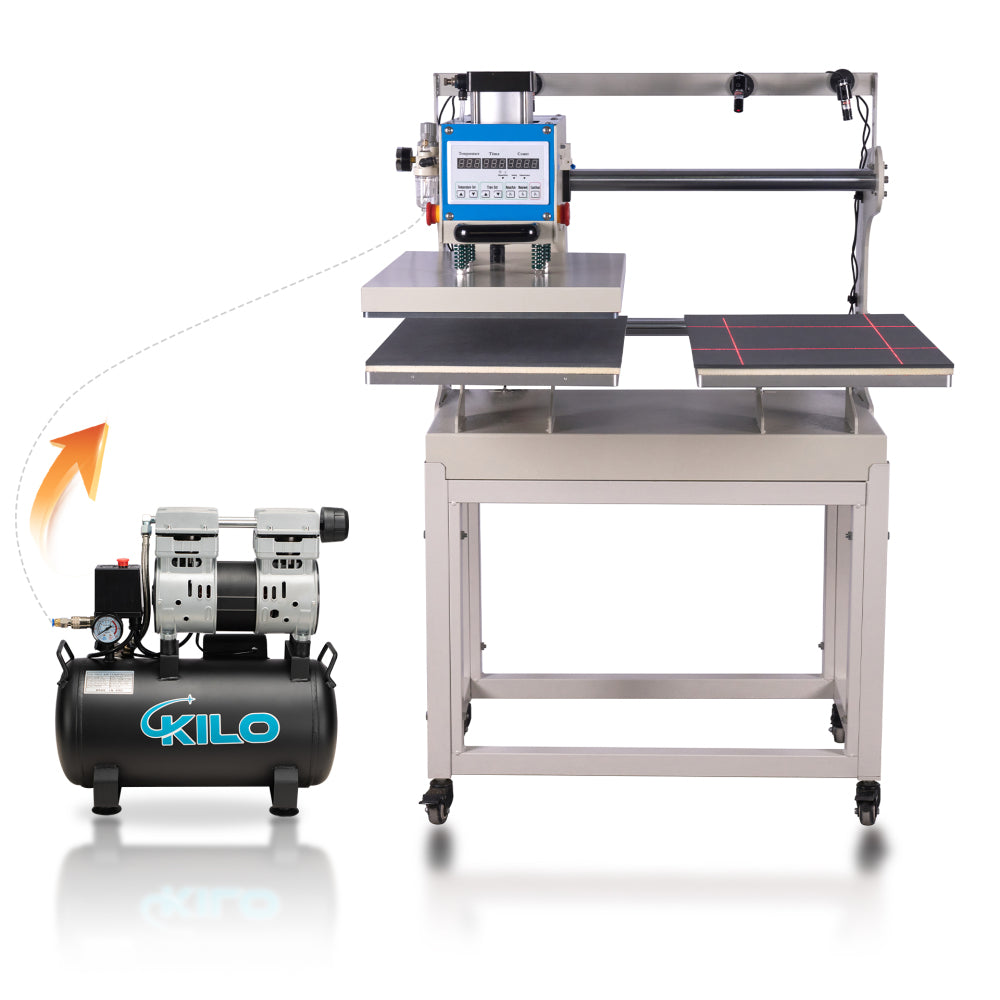

Built-in air compress
1. Oil-free air compressor, driven by a specially designed motor, efficiently utilizes energy, reduces operating costs, and is environmentally friendly and energy-saving.
2. Widely applicable, with an actual 5-gallon gas tank capacity, it provides an ample power source for various pneumatic tools and equipment, and can meet the requirements of different devices and processes for the pressure of compressed gas.
3. The gas output is stable and reliable, enabling continuous operation and reducing production interruptions.
4. It adopts a low-noise design, which reduces the noise level in the working environment.
5. It is equipped with a single - outlet quick connector to supply air source to tools. The detachable pulley makes it easy to fix and move. It has a simple structure, making it easy to maintain and operate.

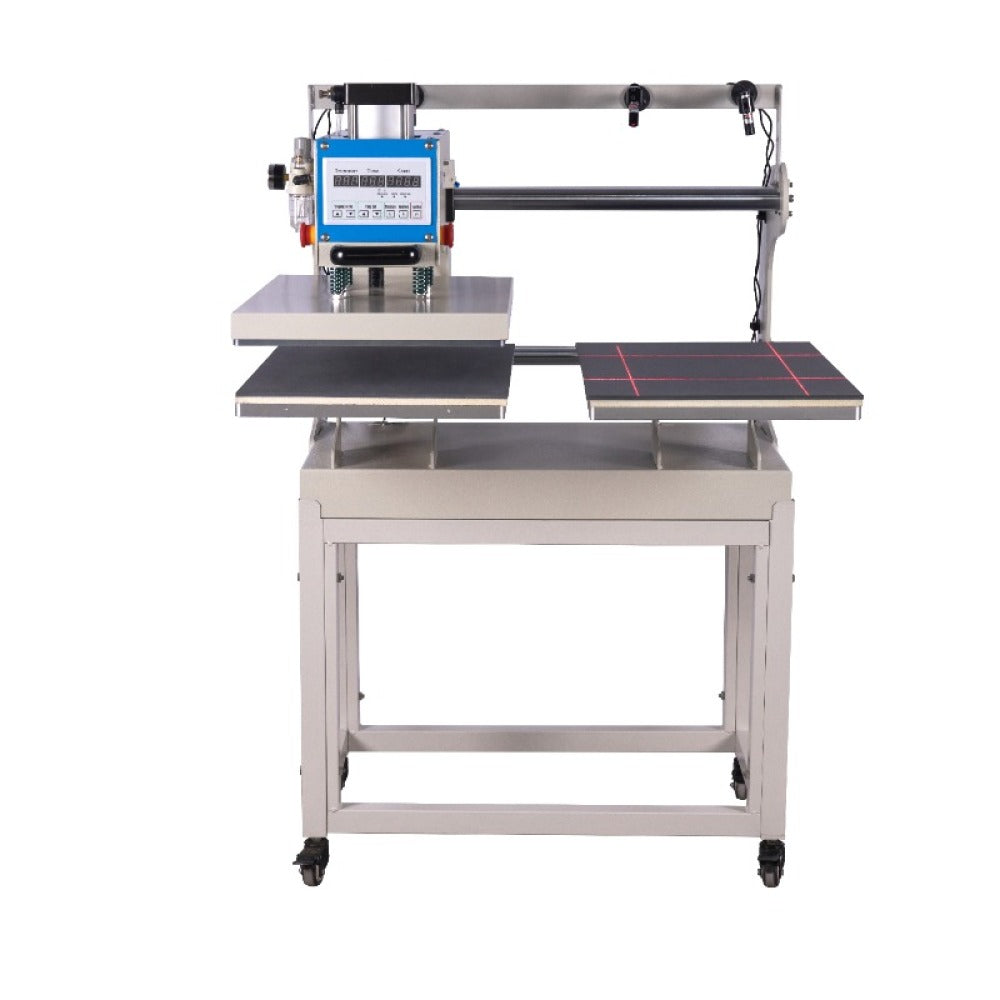

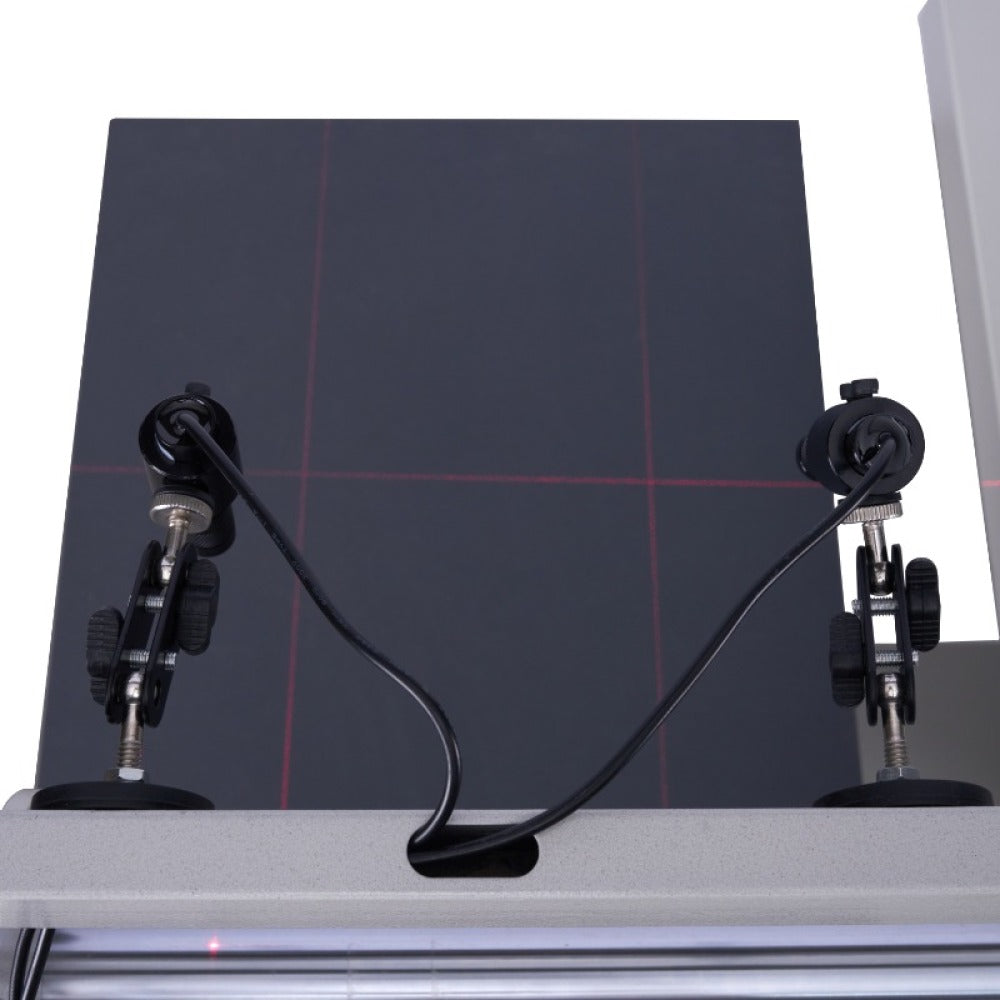

Laser positioning
1
Big LCD Display Controlled, with Temperature, Time and Count Set
Can save the labor and time cost with automatic counting.
Emergency Stop Button for Urgent Case Stop If Needed
Pressure adjusting knob for easy adjustment of different pressure
Right bottle for lubricate the air cylinder
Hose for the Air Compressor Included
1
16 x 24'' Hot Selling Heat Press Machines
| Voltage(V): | 110V/60HZ |
| Power(KW): | 1.6 |
| Temperature(℃): | 0-299 |
| Delaying Time(S): | 1-999 |
| G.W.(LB): | 306.5 |
| Package Size(''): | 42.5'' x 33.9'' x 32.3'' |
| Accept Thickness: | Max. 2.36'' Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Pure Cotton Time: | 15s-25s |
| Polyester Time: | 40s |
| Chemical Fiber Time: | 10s-40s |
| Pearl Board Time: | 60s-100s |
| Metal Pendant Time: | 60s |
| Mousepad Time: | 50s |
| Vitrolite Time: | 180s |
| Key Ring Pendant Time: | 100s |
| Ceramics Time: | 180s |
| Heat Plate Size: | 16'' x 24'' (40 x 60cm) |
1
| Material | Temperature |
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Vitrolite | 392℉ (200℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
