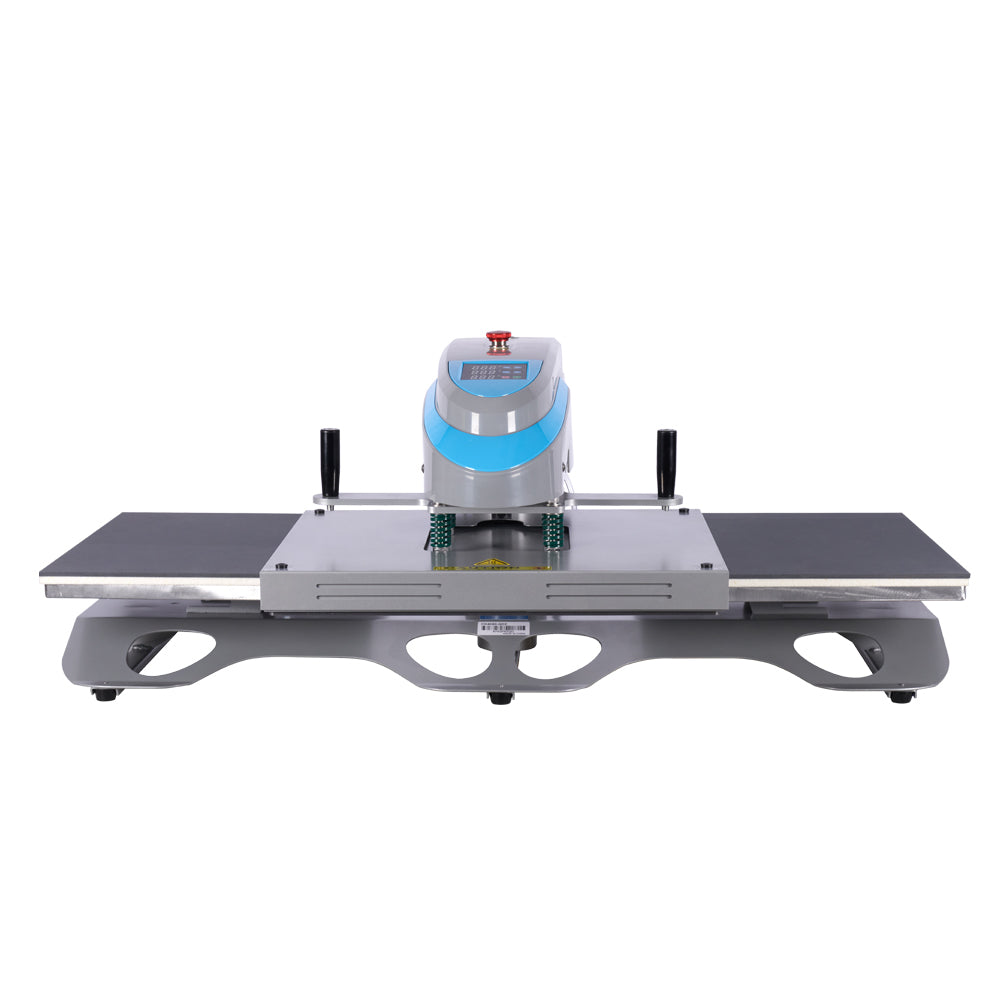

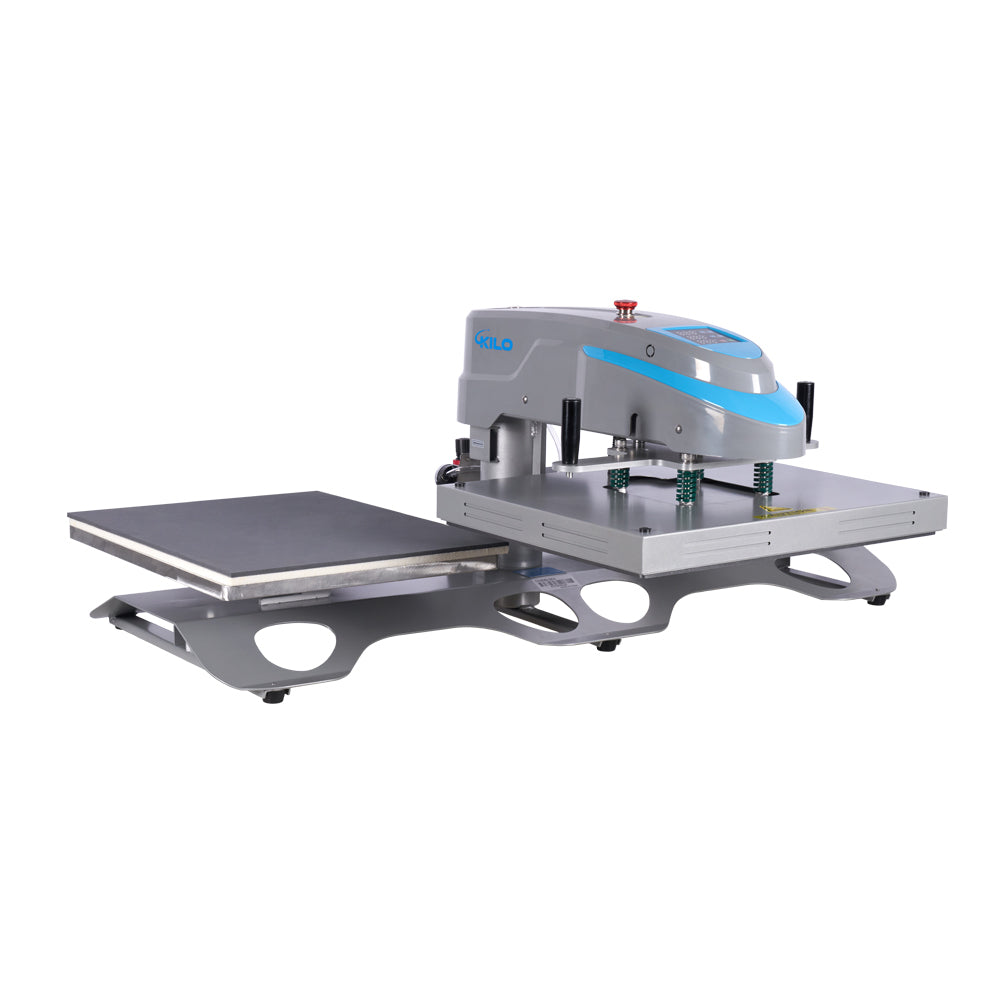

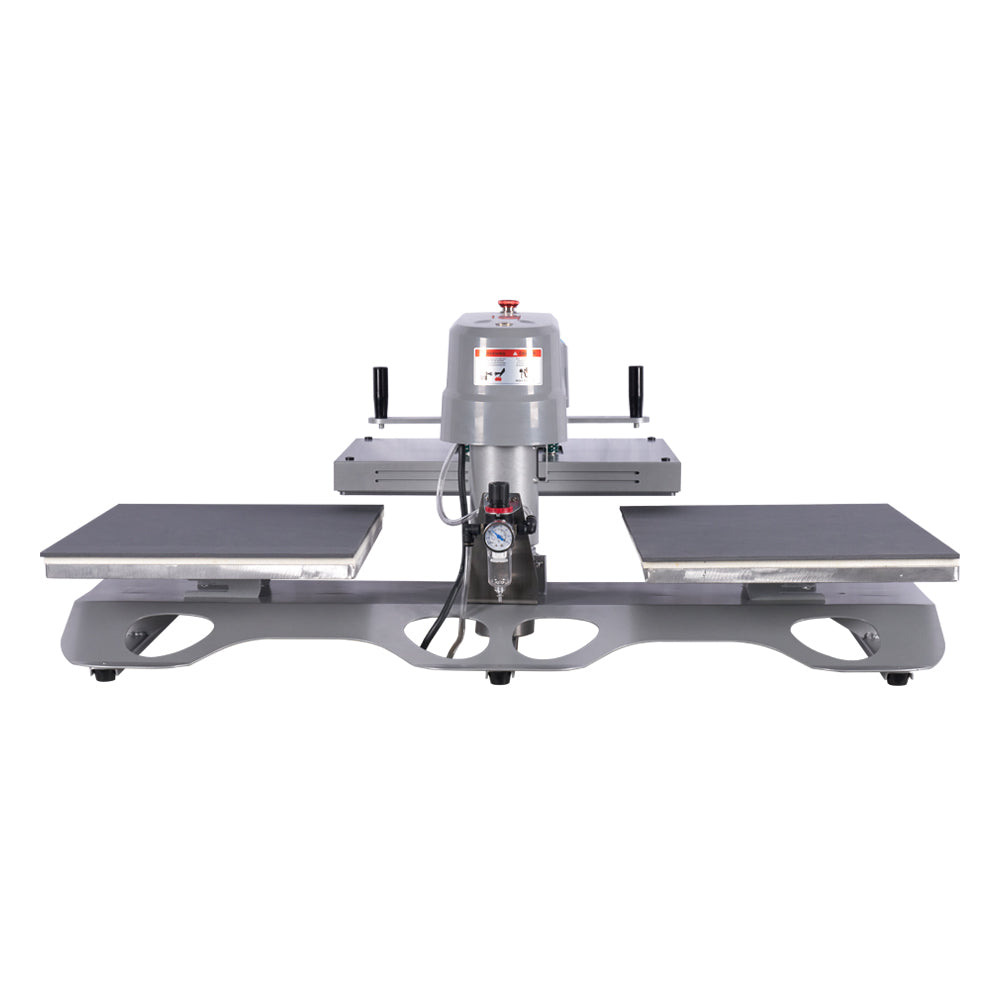

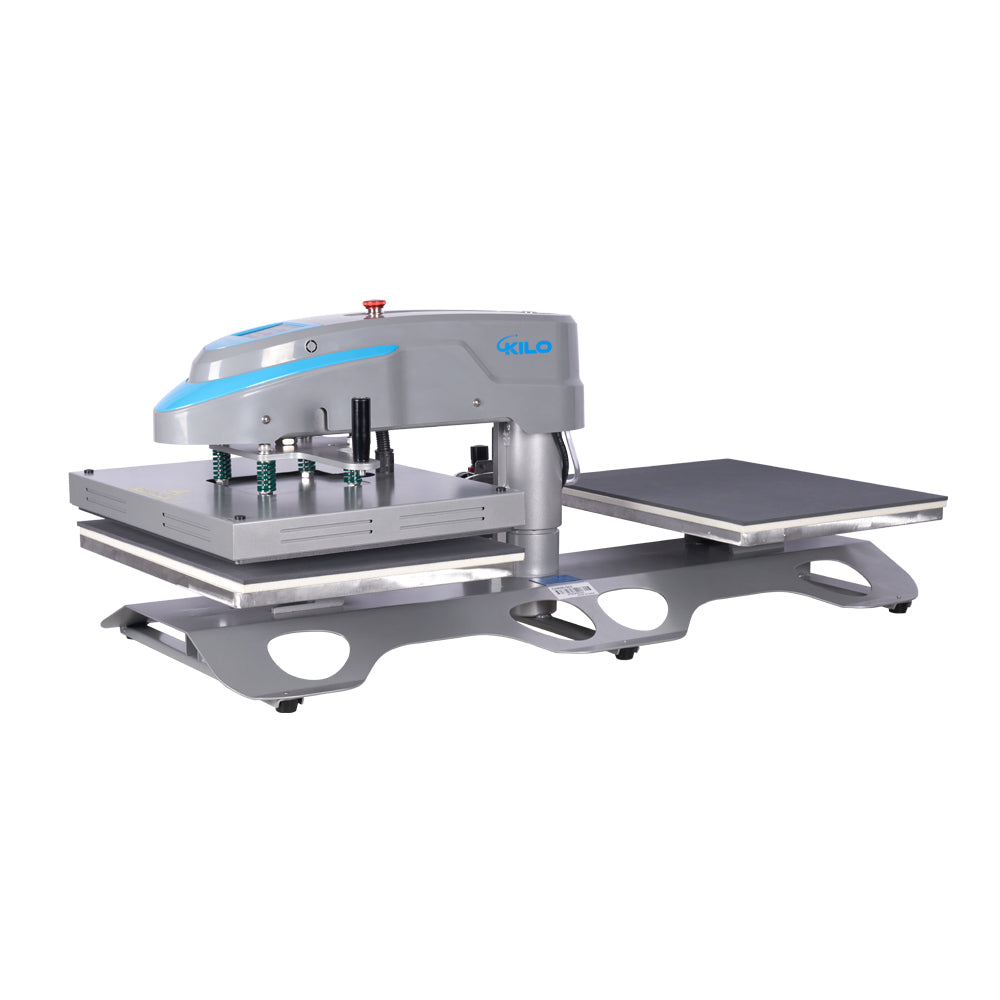

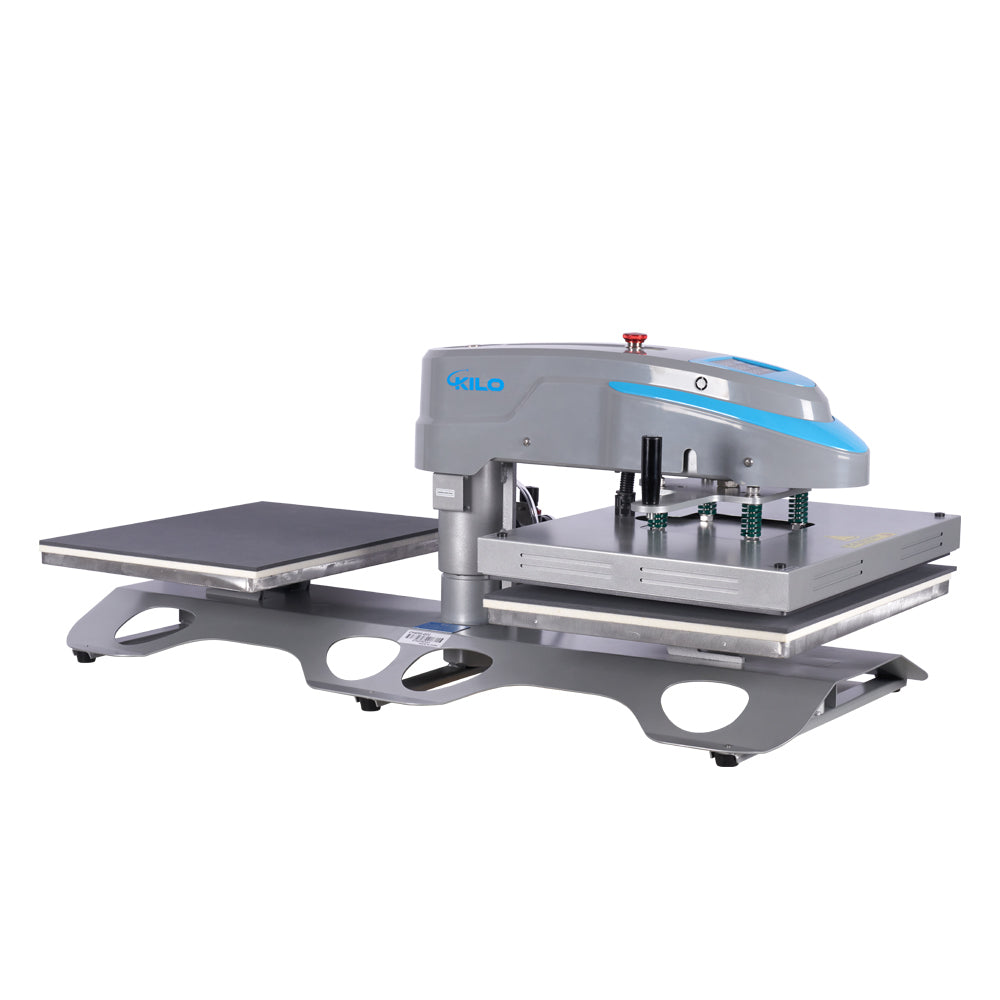

16x20 Pneumatic Dual Platen Swing Head Heat Press Machine 110V,2000W
- 1. The pneumatic heat press machine automatically press downward with air pressure

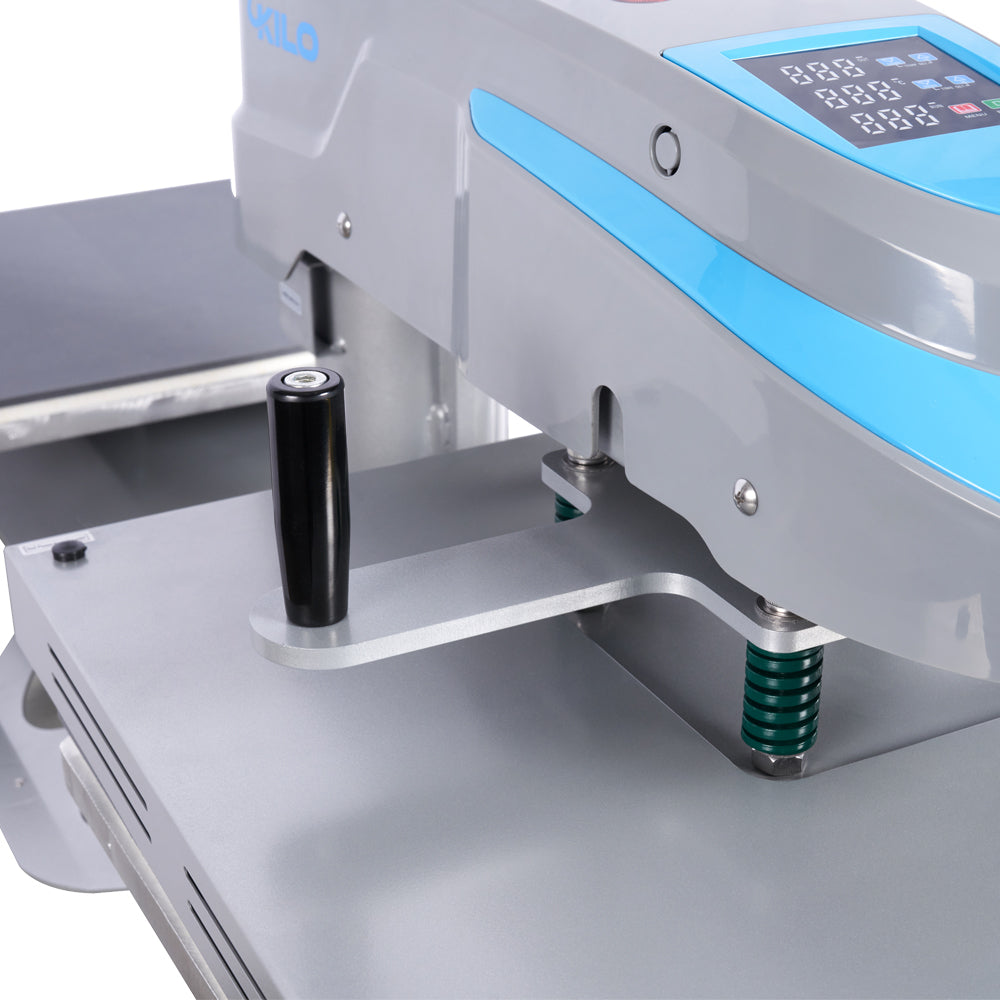

- 2. Bright, large LCD wide a wide viewing angle heat press machine
- 3. Heat press machine with self-pressure balancing system
- 4. Teflon surface sprayed with theT-shirts heat press machine upper plate
- 5. Multiple time settings heat press machine
- 6. Using swing head position limit magnetic sensor, the machine head rotates to zero position
- 7. The heat press machine powered by an air compressor ( not included)
Double-station 16X20'' Pneumatic Heat Press Machine
1. Heat press machine is full digital integrated display control;
2. High accuracy of signal indication when press process is completed;
3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;
4. Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency;
5. Teflon surface covered with the heating plate
6. Heat press machine for lifetime factory on-line service
7. Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure
8. Heat press machine using swing head position limit magnetic sendor is automatically press down when the machine head rotates to zero position
9. Left and right side bearings parallelly move the heat press machine
10. Generally pressure for 0.4Mpa-0.6Mpa heat printing
Swing-Head Heat Press Machine with Optional Infrared Positioning
1. Pneumatic heat press transfer machine makes machine more convenient for printing;
2. Heat printing machine with optional infrared positioning is more accurate for small items printing;
3. Heat press machine powered by an air compressor ( not included);
4. Heat press machine improved lower support plate makes it more convenient to input finished clothes
5. Heat press machine for 6CM pressure adjustable arange process a wider range of products
Remarks:
Additional accessories intended for replacement. Please ensure that they are stored or maintained appropriately.
Technical Details:
| Voltage(V): | 110V/60HZ |
| Power(KW): | 2 |
| Temperature(℃): | 0-299 |
| Delaying Time(S): | 1-99 |
| G.W.(LB): | 176.4 |
| Packing size(in''): | 51.2'' X 20.9'' X 23.6'' |
| Accept Thickness: | Max. 2.36'' Thick Item |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16'' x 20'' (40 x 50cm) |
2
| Pure Cotton Time: | 15s-25s |
| Polyester Time: | 40s |
| Chemical Fiber Time: | 10s-40s |
| Pearl Board Time: | 60s-100s |
| Metal Pendant Time: | 60s |
| Mousepad Time: | 50s |
| Vitrolite Time: | 180s |
| Ceramics Time: | 180s |
Temperature requirements of different materials.
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Vitrolite | 392℉ (200℃) |
| Key ring pendant | 356℉ (180℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
